Portfolio · Copper and wireless

xDSL and PtP / PtMP access

MSAN/DSLAM with VDSL/VDSL2 and G.fast, and Sub-6GHz point-to-point and point-to-multipoint wireless solutions.

← Communications service providers

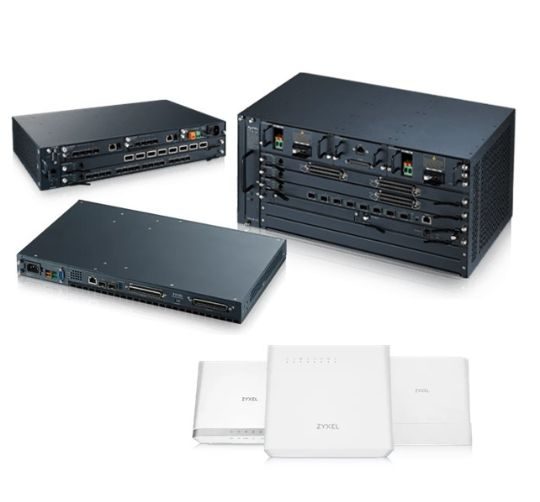

xDSL access

All-in-one MSAN/DSLAM products with several types of copper access (VDSL/VDSL2 and G.fast) on a single scalable platform with high-, medium- and low-capacity chassis.

G.fast is a cost-effective alternative that leverages existing copper infrastructure to deliver fiber-quality services, breaking the gigabit barrier and easing migration with FTTB or FTTC applications.

The CPEs are interoperable and versatile, integrating with WiFi 6, VDSL and G.fast for flexible, stable and scalable Internet connectivity.

PtP / PtMP access

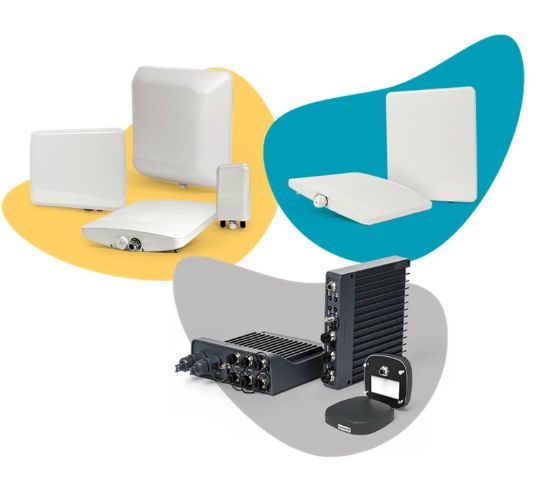

Wireless solutions in the Sub-6GHz bands to build point-to-point, point-to-multipoint and mobile broadband links, focused on:

  • WiFi / Small Cell backhaul
  • Fixed wireless broadband
  • Private network connectivity
  • Video surveillance transmission
  • Broadband for trains, vehicles and vessels on the move

Point-to-point access

4.9 – 6.0 GHz

  • Up to 2.5 Gbps @ 160 MHz, 1.2 Gbps @ 80 MHz
  • Up to 120 km / 75 miles
  • 4096 QAM modulation (15.6 bps/Hz)
  • Dynamic channel width: 20-40-80-160 MHz
  • 8 QoS queues
  • Built-in GPS for co-location of multiple radios
  • 700k PPS switching performance
  • AES 256 encryption
  • 2.5 GbE PoE and 1 Gbps full-duplex SFP interface
  • IP67 rating
  • Integrated and connectorized antenna units

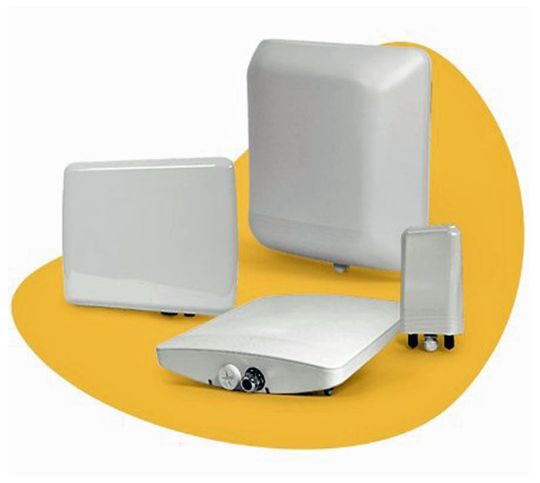

Point-to-multipoint access

4.9 – 5.9 GHz

  • JET DUO / JET Air DUO: up to 1.5 Gbps @ 128 SU
  • JET Pro / JET Air: up to 750 Mbps @ 64 SU
  • Services with SLA (CIR) + BE (MIR)
  • Range up to 40 km
  • Dynamic channel width: 20/40/80 MHz
  • QoS (DiffServ / 802.1p)
  • Built-in GPS
  • AES 128 encryption
  • IP67 rating
  • 500 Mbps subscriber units, with integrated or connectorized antenna

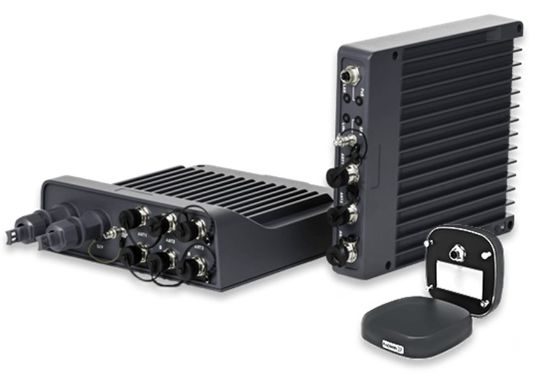

Mobile broadband · FiberMotion

  • Up to 750 Mbps per base station
  • Up to 350 km/h
  • Configurable asymmetric traffic
  • Guaranteed bandwidth per train
  • Seamless handover < 50 ms
  • Layer 2/3 architecture

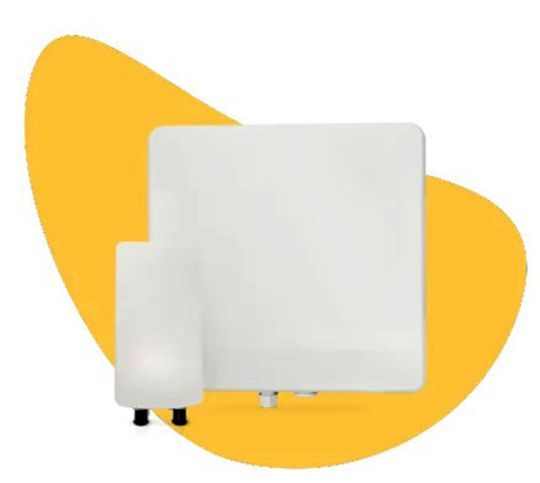

TerraBridge

57 – 71 GHz

  • License-free millimeter wave
  • 1.5 Gbps download speed
  • Automatic connection, with no predefined link pairs

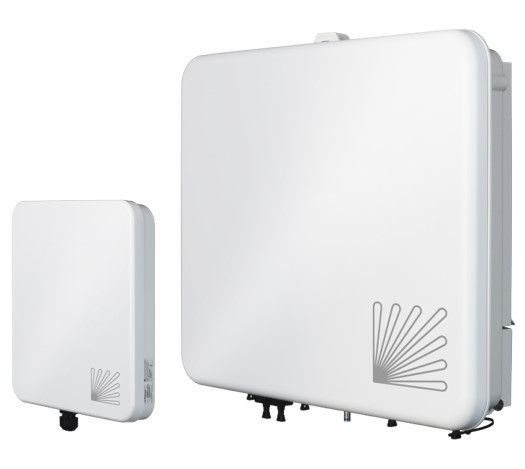

G1 point-to-multipoint platform

Sub-6 GHz FWA

Base nodes (BN) that communicate with up to 256 remote nodes (RN) with fiber-class services.

  • 2.4 Gbps per sector and 9.6 Gbps per cell
  • Up to 256 customers per sector and 1,024 per cell
  • Tx/Rx digital beamforming with automatic antenna alignment
  • 80 MHz channelization (2 x 40 MHz)
  • 6 MU-MIMO streams per BN
  • NLoS/nLoS (3-5 km) and LoS (30 km)
  • Interference cancellation of up to 40 dB

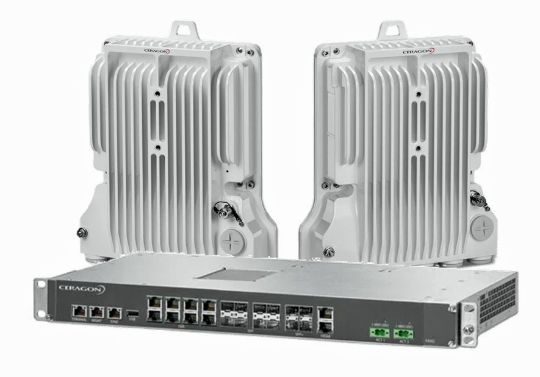

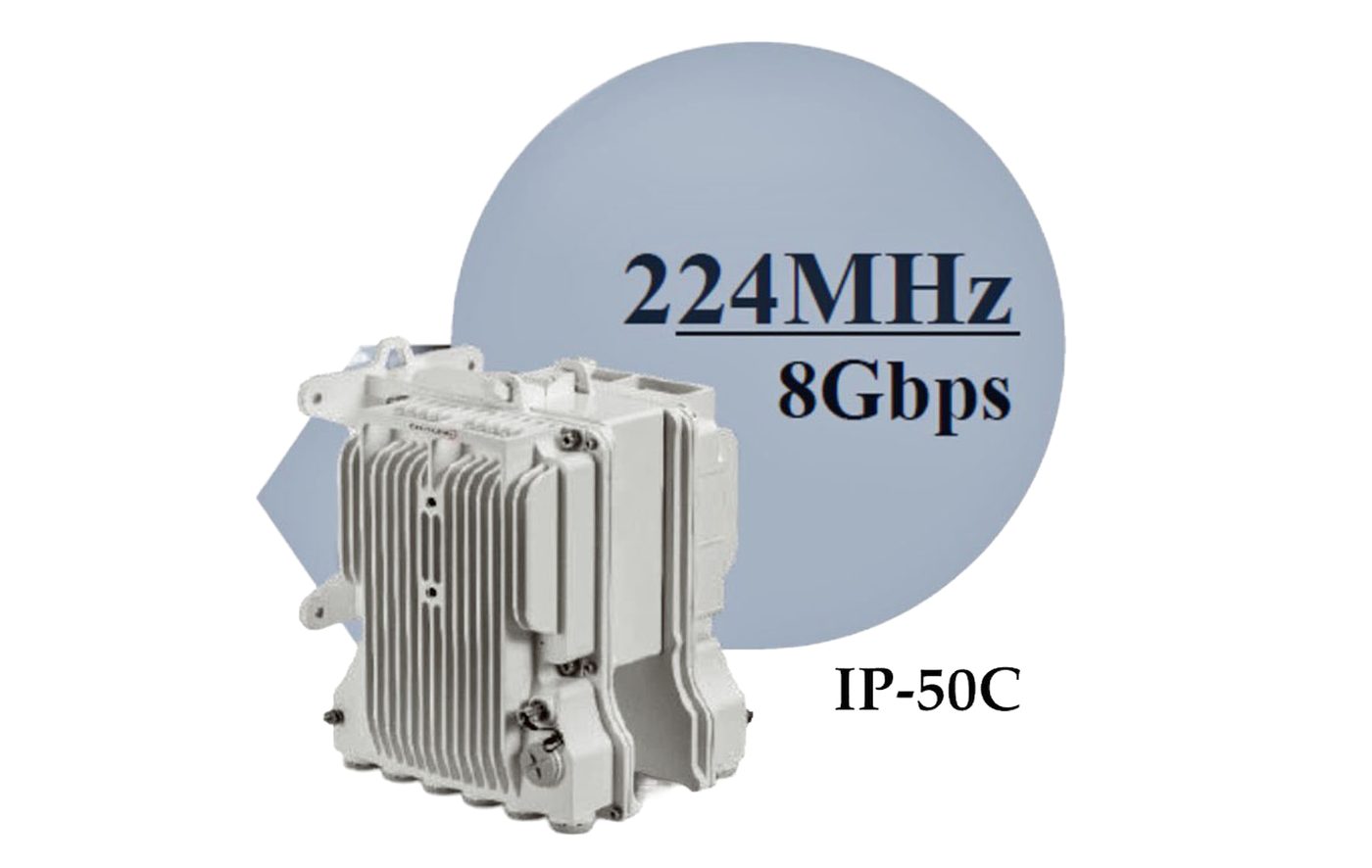

Point-to-point backhaul

6 – 42 GHz

Reliable, high-capacity wireless backhaul for open and disaggregated RAN architectures (fronthaul, midhaul and backhaul).

  • Channel width 3.5 – 224 MHz
  • ACM, BPSK – 4096 QAM
  • 2 Gbps @ 112 MHz and 4 Gbps @ 224 MHz in 2+0 XPIC
  • Up to 8 Gbps with L1 4+0 / MIMO aggregation
  • 1/10 GbE, 10 GbE (SFP+), 1/2.5 GbE (SFP) interfaces
  • Dual band (2 radios)
  • Integrated Carrier Ethernet, MEF 2.0

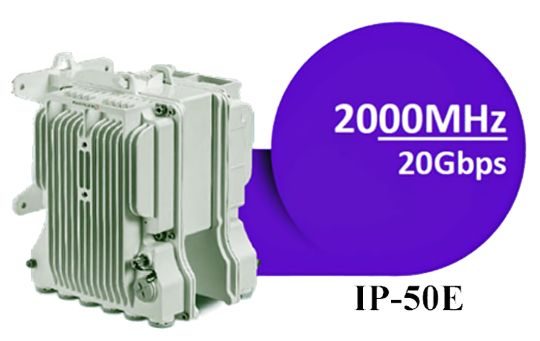

E-band point-to-point backhaul

71 – 86 GHz

  • 20 Gbps capacity (2+0 XPIC)
  • Channel spacing 62.5 – 2,000 MHz
  • ACM, BPSK – 512 QAM
  • Integrated flat-panel or parabolic antenna
  • 4x1/10 GbE or 40 GbE (QSFP+), CPRI, eCPRI interfaces
  • 1+0 / 2+0 XPIC configuration
  • Multiband (E-band + MW) with multi-vendor support

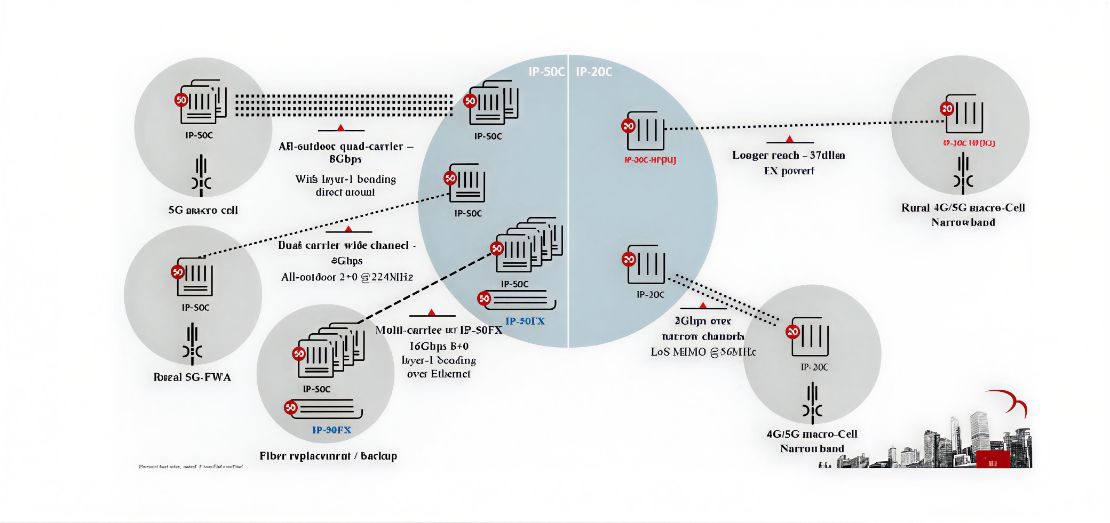

Wireless access diagram
Wireless access diagram
Wireless access diagram
